This isn't the whole manual, just a few key elements that you really need.  For example, you don't really need to know what the speedometer does, but adjusting the brakes and clutch might be nice.

If you want the whole shop manual, try our sister group at http://autos.groups.yahoo.com/group/Honda-Super-Cubs/files/shopmanual%20C70%2080-82/

Key facts from the shop manual

Carburetor
Float Level 10.7mm
Pilot Screw setting '80 2 turns out '81 2.5 turns out from all the way in
Oil Capacity 0.7 liter after disassembly, 0.6 after draining
Engine
Valve Clearance (For '81 and '82 models) Intake - 0.05 mm (0.002 in)
Exhaust - 0.05 mm (0.002 in)
Tires
Front 2.25-17-4PR (Kenda makes one)
Rear 2.50-17-6PR (Bridgestone makes one)
Electrical
Point Gap
Ignition Timing "F" Mark
Full Advance
Generator Capacity
Battery Capacity
Spark Plug (Normal Climate) NGK C7HS (CR7HS) gapped to .6-.7mm  (.024-.028 inches)
Fuse capacity 10A
Headlight Honda part 15/15W
Tail/Stop 5.3/25w 3/32cp
Turn Signal 17W 21cp SAE #1129
Speedo, other dial lights 1.7w SAE #51

Selected pages from the 1982 owner's manual

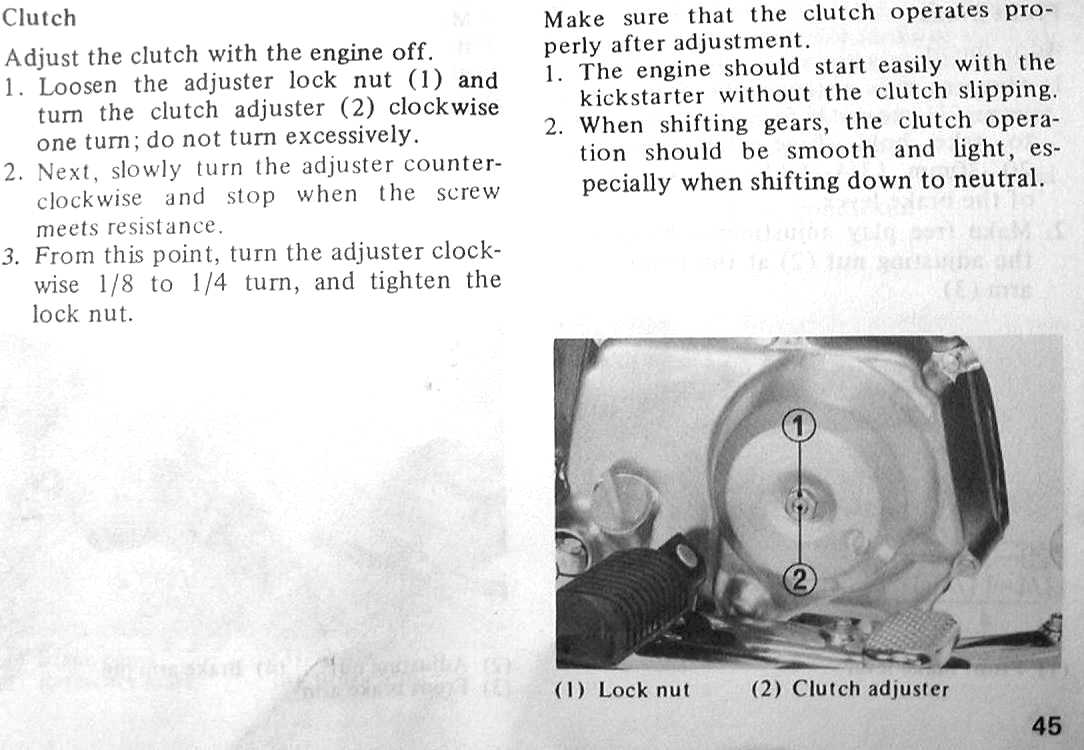

Clutch Adjustment

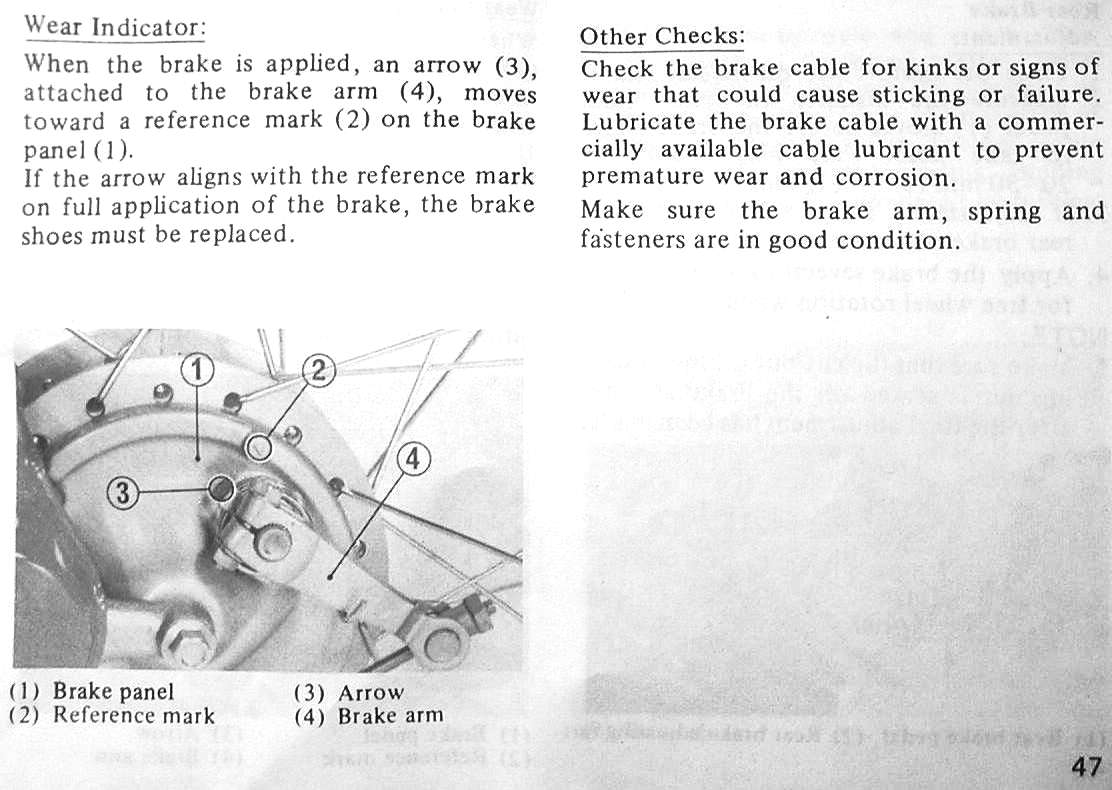

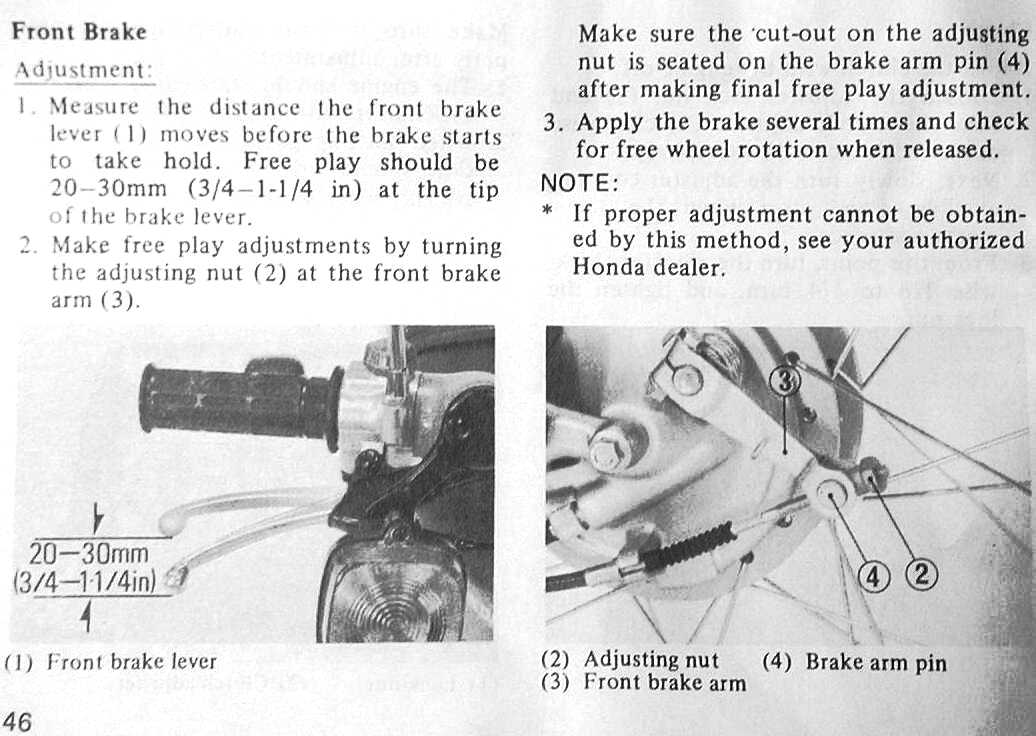

Front Brake Adjustment (1) (2)

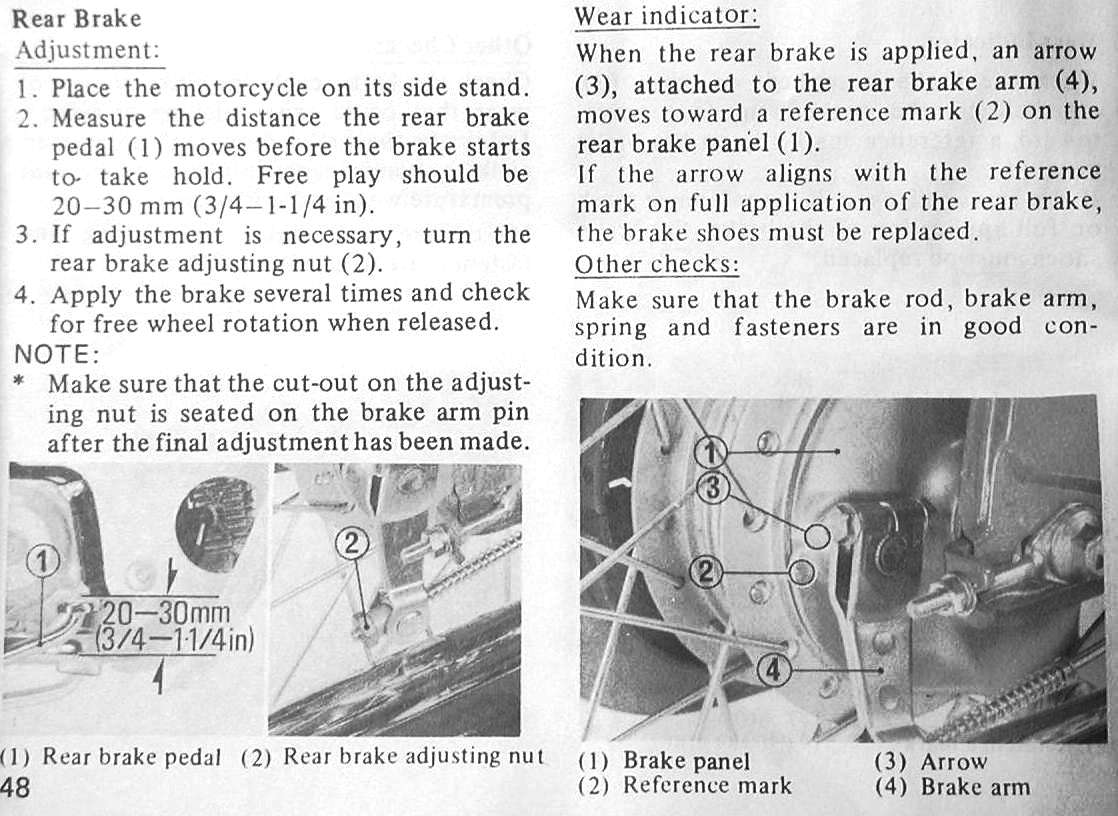

Rear Brake Adjustment

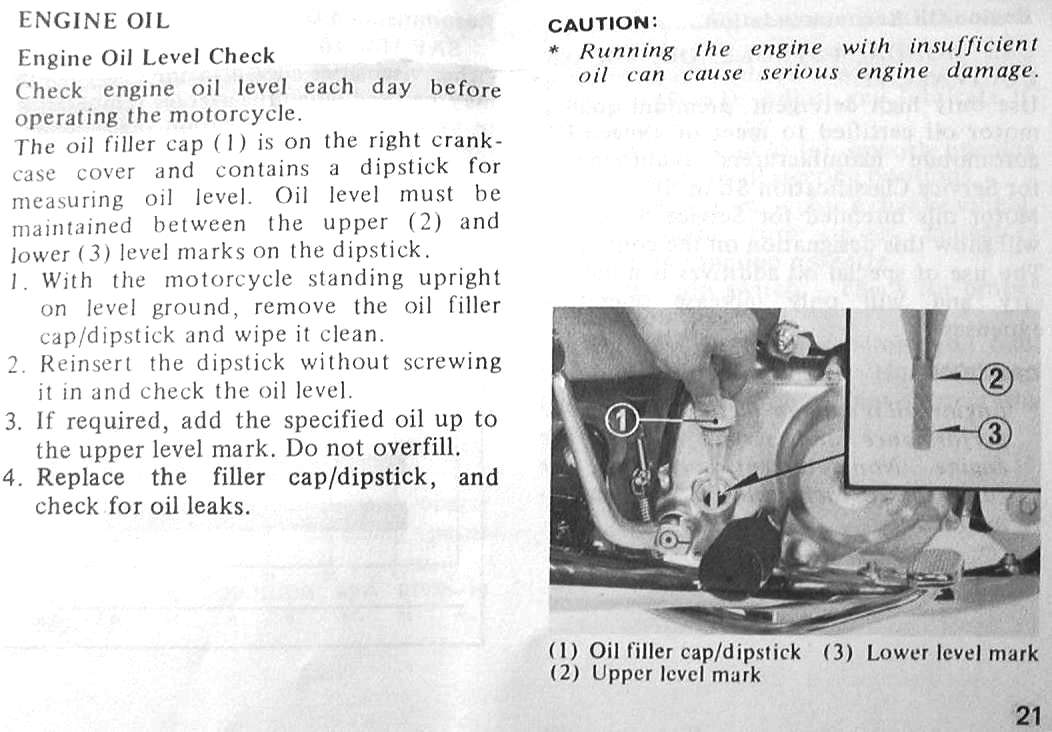

Checking Oil Level

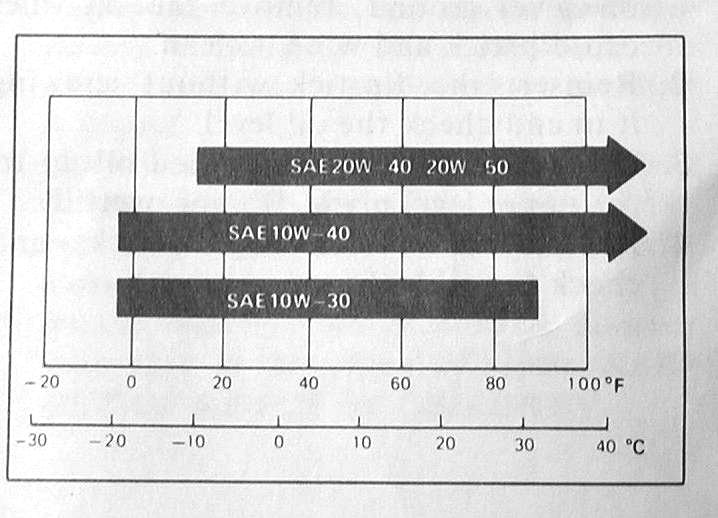

Oil recommendations

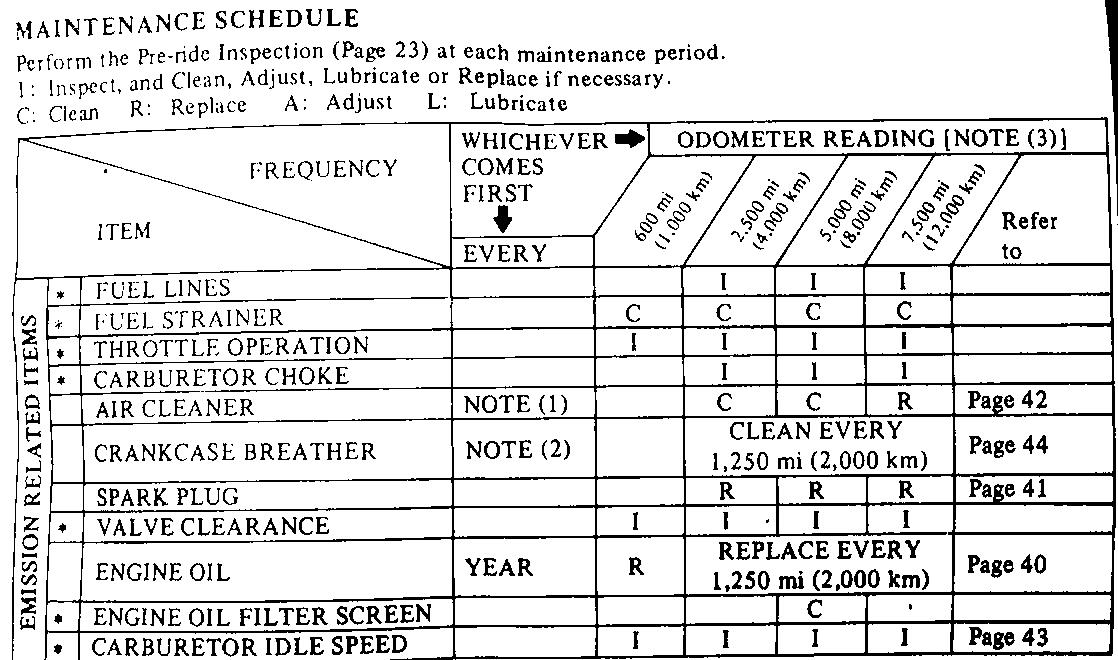

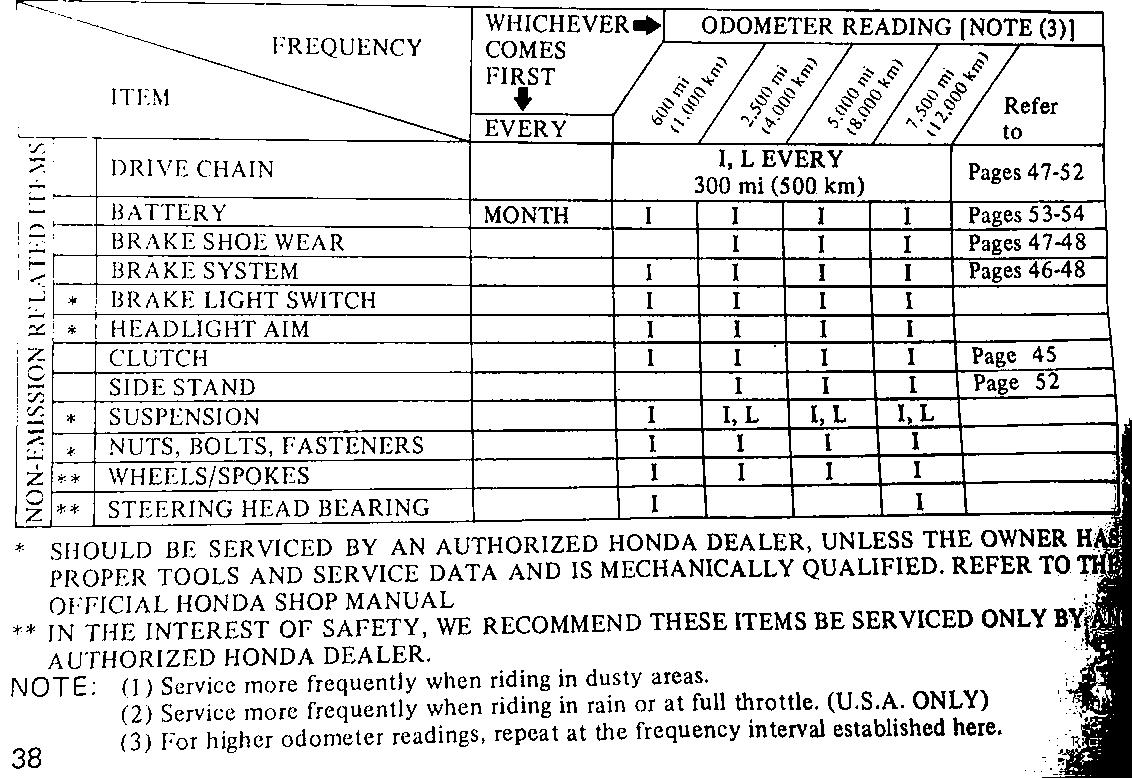

Maintenance Schedule (1) (2)

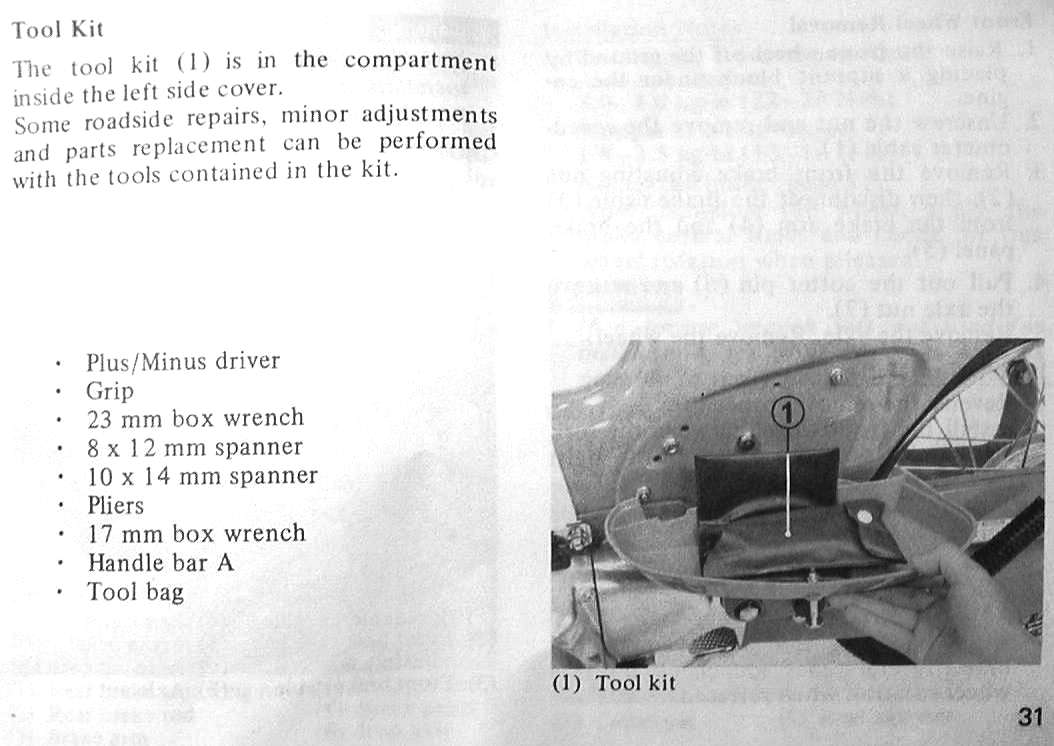

What's in the Toolkit?

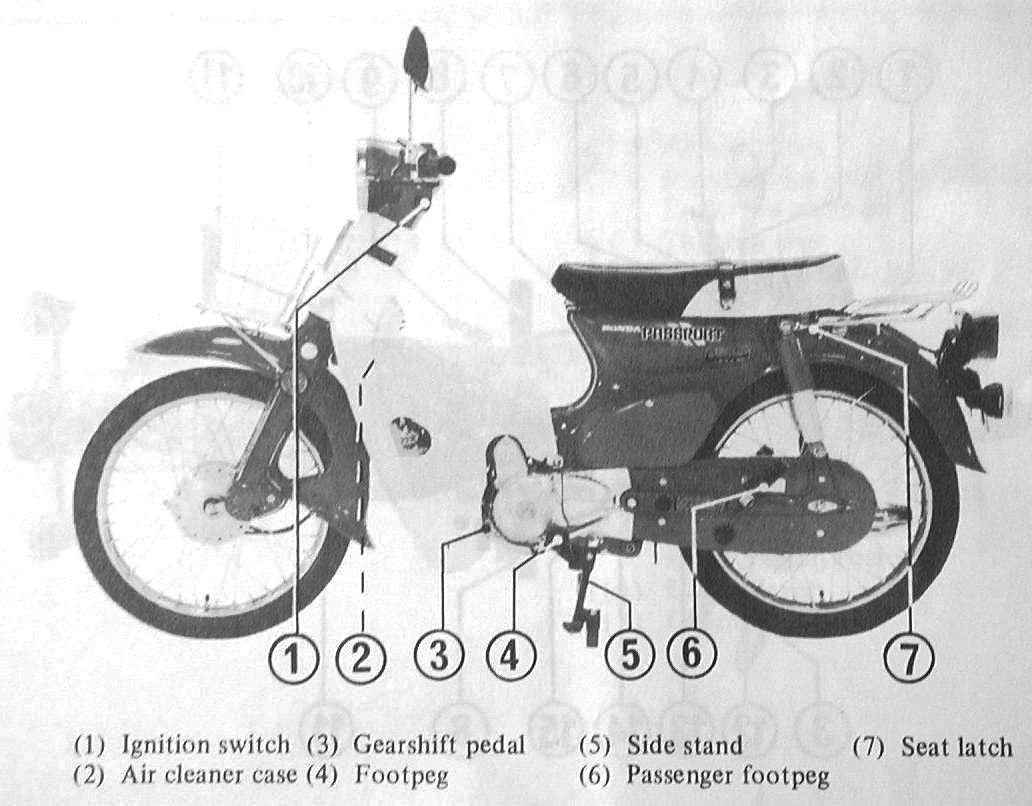

Left Side

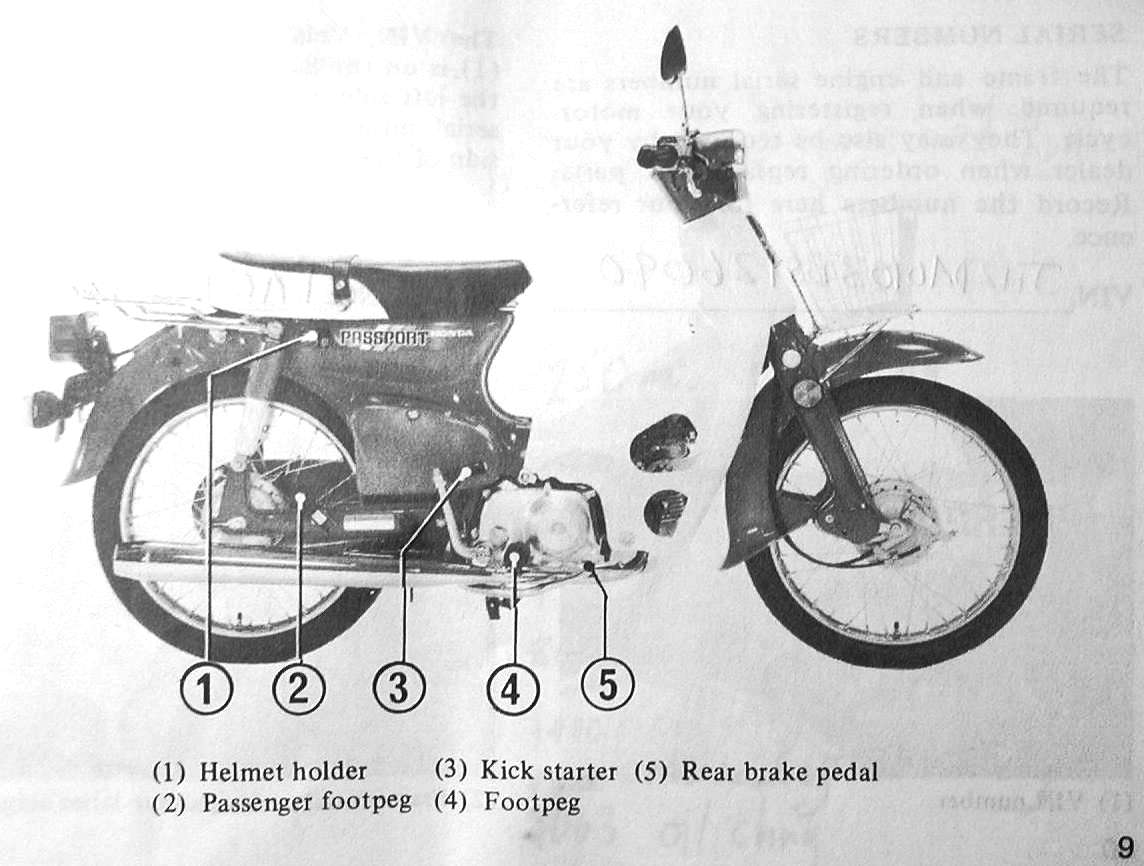

Right Side
1981 (6 volt) Electrical Diagrams - (1) (2) - You're gonna have to paste them together
1982 (12 volt) Electrical Diagram (one page only)
NEW! Carburetor diagram!
